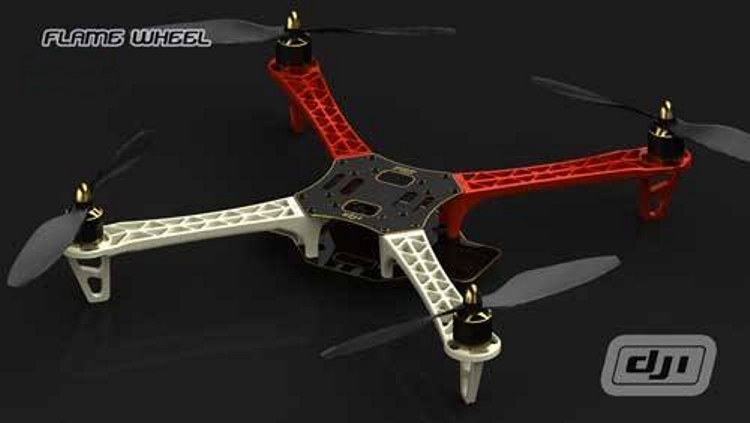

FlameWheel series is multi-rotor frame designed for all pilots for fun or AP.
| Model | Flame Wheel 330 (F330) |
| Frame Weight | 156g |
| Diagonal Wheelbase | 330mm |
| Takeoff Weight | 600g ~ 1200g |
| Recommended Propeller | 8 × 4.5in |
| Recommended Battery | 3S~4S LiPo |
| Recommended Motor | 22 × 12mm (Stator size) |
| Recommended ESC | 18A OPTO |
Flame Wheel F330 ARF Kit Includes:
Motor x 4 Stator size: 22x12mm KV: 920 rpm/V
ESC x 4 Current: 30A OPTO Signal Frequency: 30Hz ~ 450Hz Battery: 3S ~ 4S LiPo Propeller x 4
Adopt PC/ABS ultrastrength material design,fine surface hardness ,anti-impact.
Dimensions: 10 x 4.5 in; 8 x 4.5 in
Features
Ultra High Strength Material
Frame Arms adopt PA66+30GF ultrastrength material design, provide better crashworthiness.
Integrated PCB wiring
Using high strength compound PCB frame board, which makes wiring of ESCs and battery more safe and easier.
Huge assembly space
Optimized frame design, which provides abundant assemble space for autopilot systems.
Gorgeous Frame Arms
Provide different color frame arms: red, white, black, which makes your flight more colorful.
Product Usage Cautions
When flying, the fast rotating propellers of FlameWheel will cause serious damage and injury. Therefore, please fly with a high safety consciousness.
● Keep flying multi-rotor away from objects, such as obstacles, human beings, high-voltage lines and so on.
● Do not get close to or even touch the working motors and propellers, which will cause serious injury.
● Do not over load the multi-rotor.
● Check whether the propellers and the motors are installed correctly and firmly before flight.
● Make sure the rotation direction of each propeller is correct.
● Check whether all parts of multi-rotor are in good condition before flight. Do not fly with old or broken parts.
● Use DJI parts as much as possible.
