Details:

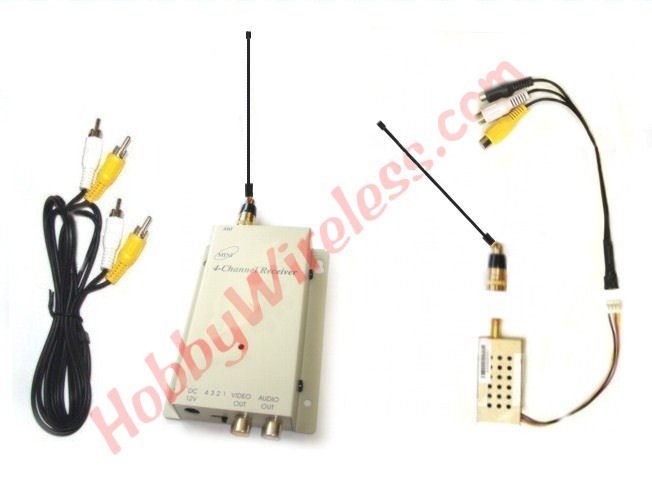

This is a great set of 500mw 0.9 GHz (900 MHz), transmitter and receiver with a single audio and video output (receiver with dual output for audio and video is available as an upgrade).
If you have a 2.4 GHz radio control system, and want to make a video with your model without being concerned about interference, 900 MHz is the way to go.
The transmitter has PLL lock channel, is lightweight, compact, you will not be disappointed with its performance.
The receiver is also lightweight, compact, great performance with at least 1 kilometer of range, and with a high gain antenna attached to the receiver will exceed your expectations !!!
Receiver Specs:
-900MHz audio/video receiver
-Compatible with our 900MHz transmitters
-Detachable - swivel SMA antenna
-Compatible with our 900MHz transmitters
-Detachable - swivel SMA antenna
-Operation Voltage 10.5-13 volts DC volts
-Audio and Video Output RCA type
Transmitter Specs:
-RF Output Power 500 mW (milliwatts)
-Dimensions, Weight 50.0 x 25.7 x 8.0 mm, 21g without antenna
-Dimensions, Weight 50.0 x 25.7 x 8.0 mm, 21g without antenna
-Four (4) selectable channels (USA version only Channel 1 is available, however does not affect the performance of the transmitter).
-Modulation Method FM
-Signal Stability +/- 250 KHz phase-lock-loop (PLL) synthesized
-Antenna Input Plug female SMA plug
-Input Voltage 12 volts DC (+/- 10%) center pin positive
-Power Consumption ~300mA
-Video Input Type Composite 1 Vp-p @ 75 ohms unbalanced (Yellow wire)
-Power Input 10.5 - 13 volts DC (Red wire Positive +) (Black wire Negative -)
-Audio Transmission mono (White wire)
-Audio Input Type line level
-Standard Antenna Dimensions 114mm long x 9 mm diameter at widest point
-Standard Antenna Weight 7.5g
-Standard Antenna Polarization Vertical
-Power Plug for receiver and transmitter is needed - Click here
-Modulation Method FM
-Signal Stability +/- 250 KHz phase-lock-loop (PLL) synthesized
-Antenna Input Plug female SMA plug
-Input Voltage 12 volts DC (+/- 10%) center pin positive
-Power Consumption ~300mA
-Video Input Type Composite 1 Vp-p @ 75 ohms unbalanced (Yellow wire)
-Power Input 10.5 - 13 volts DC (Red wire Positive +) (Black wire Negative -)
-Audio Transmission mono (White wire)
-Audio Input Type line level
-Standard Antenna Dimensions 114mm long x 9 mm diameter at widest point
-Standard Antenna Weight 7.5g
-Standard Antenna Polarization Vertical
-Power Plug for receiver and transmitter is needed - Click here
Channels:
CH1 910 MHz (USA)
CH2 980 MHz (available only outside USA)
CH3 1010 MHz (available only outside USA)
CH4 1040 MHz (available only outside USA)
Click here for Transmitter and camera connection details, BNC to RCA adpater is sold separately in the accessories
Note: All transmitters shipped to any addresses within US territory will have only the Channel 1 (910 MHz) available.
- Do not turn the transmitter on and leave it on for several minutes without air flowing through, it can overheat causing permanent damage. It's a powerfull transmitter in a tiny little metal box !!!
- No license is required to purchase it, however in order to legally operate within USA an amateur radio license is required. Disclaimer: Hobby Wireless is not responsable any damage, loss, illegal operation or changes made by the user to the transmitter will be totally the user's responsibility.
