Boosted PSU receiver is a reciever that has a much higher immune psu for big/digital Servos, that draws a lot of power, if not the reciever may restart.
Version 6, with new radio system (compatible with old versions), improved filter. 2dbm better sensitivity
Improved input filter, now even better attenuation for 900 - 1300 - 2400 video transmitters, virtually impossible to jamm.
Improved distance of the servo connectors, now all 12 can be mounted at the same time and no bending or problems.

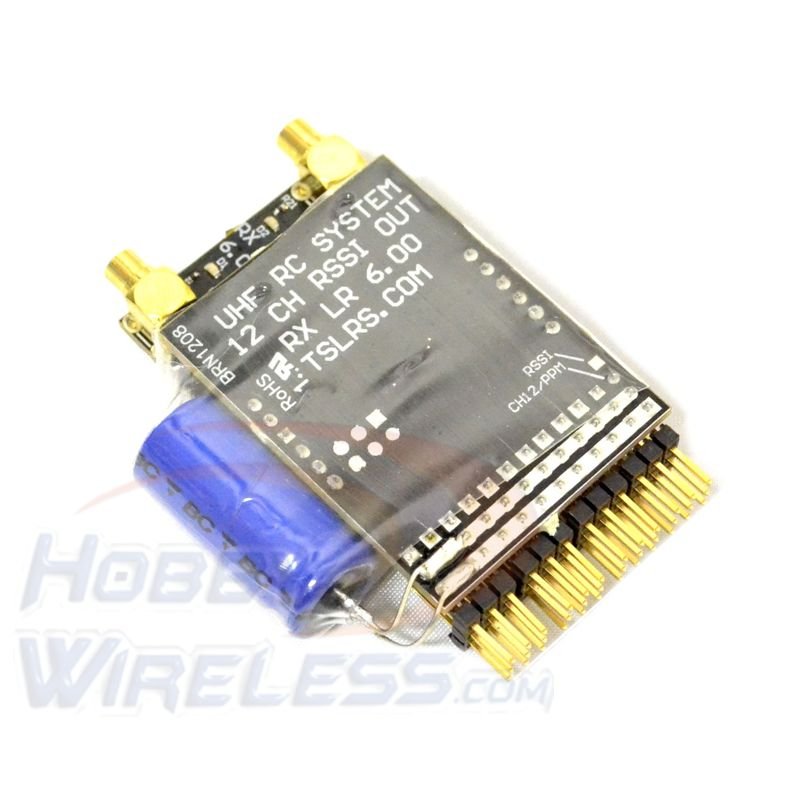

The receiver board is 34 mm width, 53mm long, (8mm longer when angled connector option as shown) 12mm height, weight: 19.4 gr.
Receiver 12ch with DIVERSITY ! and LNA Low Noise Amplifier, uptimized input filter so it can co-exist with strong 2.4Ghz on board video transmitters.
Two MCX connector coax dipole wire antennas come with each RX this type, weight 5.4 gr each.
The extra pin in ch 12 connector is rssi out, it is now buffered so loading of the RSSI out is uncritical, 1k ohm Zout, It is also filtered to avoid less jumpy OSD readings ch 12 connector is also ppm out when < 12ch are used.
PPM out is the same as sum-signal and this is offcourse fully compatible with mikrocopter controller board, all RX types and models have this.
Sensitivity: -113dBm to -114dBm IMPROVED NEW LNA with less noise factor
Input voltage range: 4-6V (rx uses 134mA at 5V)
Servo signal pulse output: 3.3V positive
Radio band: 433 & 444Mhz multi band and multi frequency hopping system.
Temperature range: -40C to +70C tested
Package includes 2 dipole antennas.
