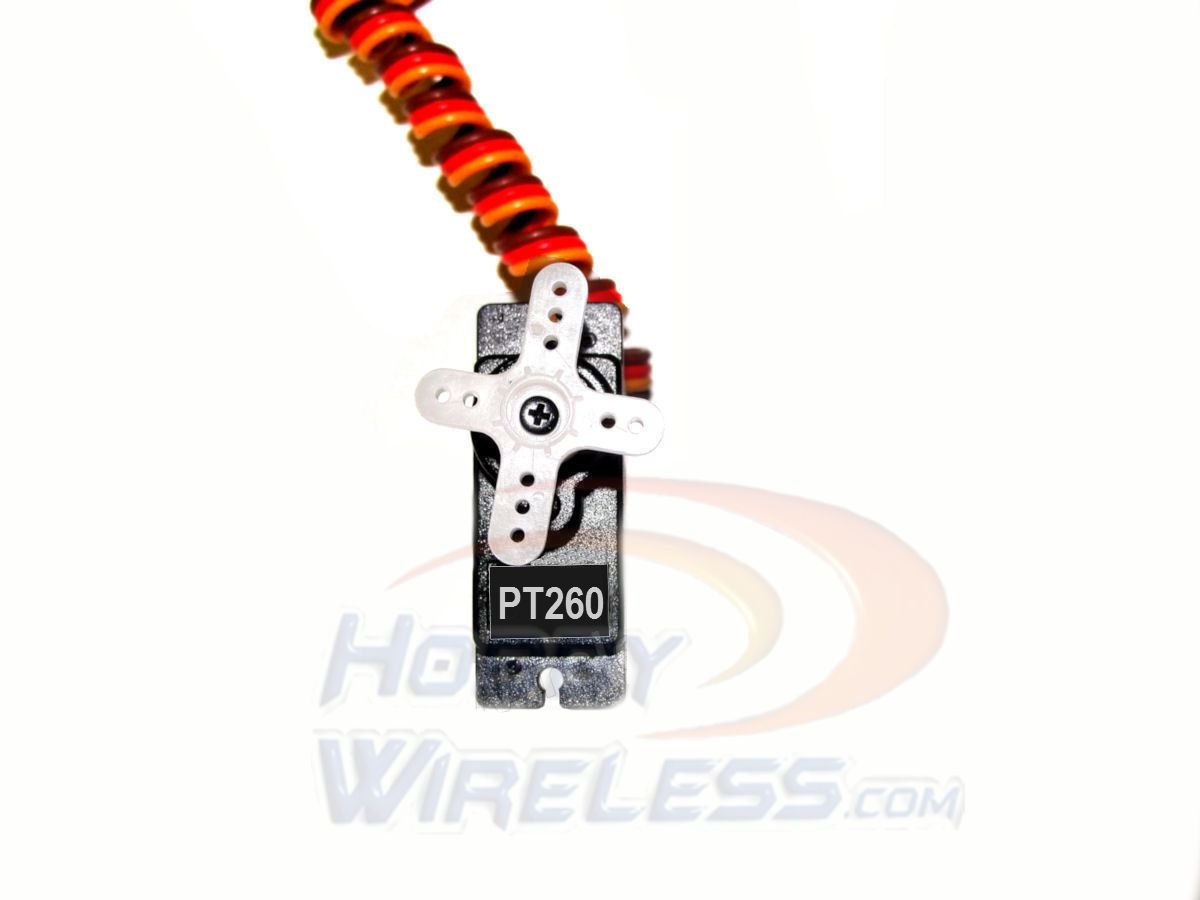

The PT260 mini digital metal geared servo can smoothly turn up to 260° degrees, almost 3 times the turning capability compared to the regular servos.
It's perfect for application where more than 90° degrees of turn is needed, such as custom Pan and Tilt system for cameras.
With not only one but 4 metal gears the PT260 servo can handle hard work quite well.
Note: You might have to adjust the ending points on your RC transmitter to obtain the full 260° degress.
Specifications:
Operating voltage:4.5v-6v
Torque:1.8Kg (63oz) at 4.8v
Speed: 0.10 sec/60° 6v or 0.12 sec/60° at 4.8v
Travel: 60° each direction @ 400 µs or 90° each direction @ 600 µs (by adjusting "End Point" value on the RC transmitter)
Gear material: 4 metal gears and 1 nylon gear
Size: 22.5 x 11.5 x 24.6mm
Weight: 12 grams
