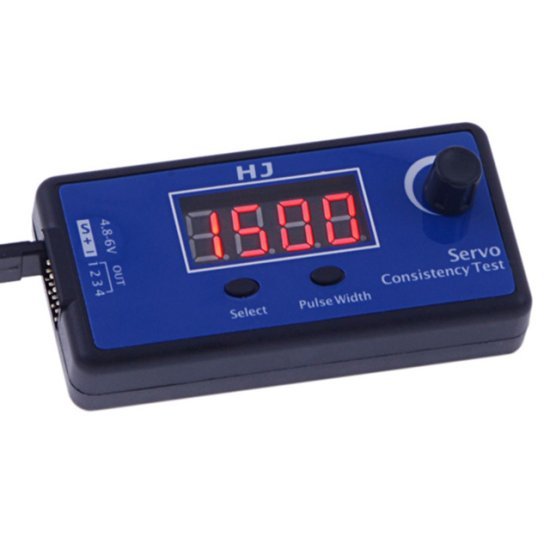

This servo/ESC tester can synchronize output and control 4 servos.
Features:
- Accurate to 2us (1 millisecond = 1000 microseconds)
- Capable of testing steering gear response to subtle course changes
- Rotary potentiometers to increase or decrease the width of the pulse output.
Specifications:
- Input Voltage: DC 5 ~ 6 V
- Signal Output Width: 800 ~ 2200us
- Size: 14 * 10 * 3 cm / 5.5 * 3.9 * 1.2in
- Weight: 39g / 1.4 Oz
Function key switch, circulation patterns:
- 1. S-1 manual mode (manual)
- 2. Mode S-2-bit (neutral)
- 3. S-3 automatic (auto)
Key Pulse width:
- 1. 50 H Power 20us analog signal cycle frequency 50Hz
- 2. 125 H digital steering gear 8US a cycle signal frequency 125Hz
- 3. 250 H digital servo 4us cycle frequency 250Hz signal
Warning: Press the digital or analog signal button to select the corresponding servos and then plug in the servo to prevent damage to the power steering.
Package Includes:
- 1x Digital Servo tester / ESC consistency tester
