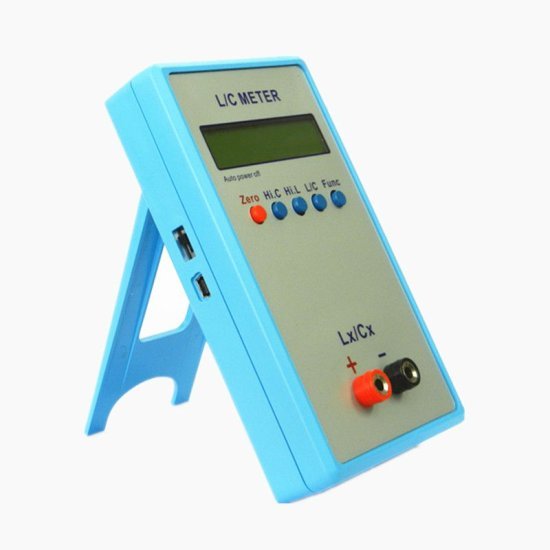

The LC200A Meter Tester is relative to the product on the market inductance-capacitance meter (such as 6243 series). In the small value of the test has an absolute advantage is the accuracy and minimum resolution, has a flexible line calibration measurement accuracy, and it can be maintained at any time. The instrument does not use any potentiometer adjustment, the calibration parameters are completely stored in the internal FLASH microcontroller, which it will not loose if power-down, it is more accurate and convenient than other potential calibration ways.
Features:
- model:LC200A
- Supply power: +5v ,miniUSB interface ,4pcs AA battery
- Measurement accuracy:1%
- Capacitance measuring range: 0.01 pF - 10uF
- The minimum resolution: 0.01 pF
- Big Capacitance measuring range1uF-100mF/minimum resolution:0.01UF
- Inductance measuring range: 0.001 uH - 100mH
- Big inductance measuring range: 0.001 mH - 100H
- The minimum resolution: 0.001uH
- Test frequency range: L/C about 500KHZ/Big inductance 500HZ
- Effective display digits: 4 digits
- LCD display mode: 1602
Package include:
1x High precision L/C meter board LC200A
1x mini USB power cable
2 x Alligator clips
